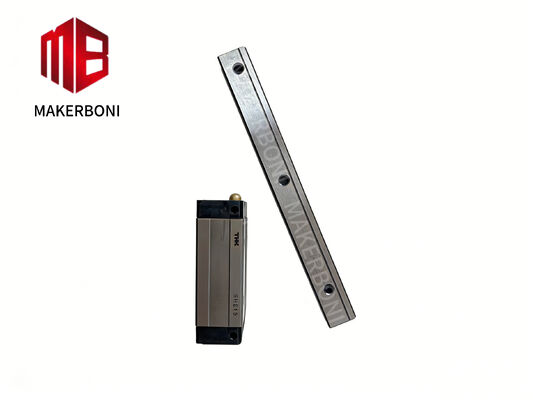

15mm Rail Width Extended Bearing Block & Rail Assembly 149.5mm Length Linear Motion Guide for Gerber

Name: 15mm Rail Width Extended Bearing Block & Rail Assembly 149.5mm Length Linear Motion Guide for Gerber
Brand: Makerboni Mechanics (Shanghai) Co., Ltd.
SKU: 1011858000
Price: 5,000.00 USD
Availability: InStock

Model Numarası:	1011858000
Adedi:	1 adet
fiyat:	1-9999
Teslim Zamanı:	1-7gün
Ödeme Şartları:	T/T

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Vurgulamak:

15mm Rail Width Linear Motion Guide

Extended Bearing Block Linear Motion Guide

149.5mm Length Bearing Block & Rail Assembly

Ürün Tanımı

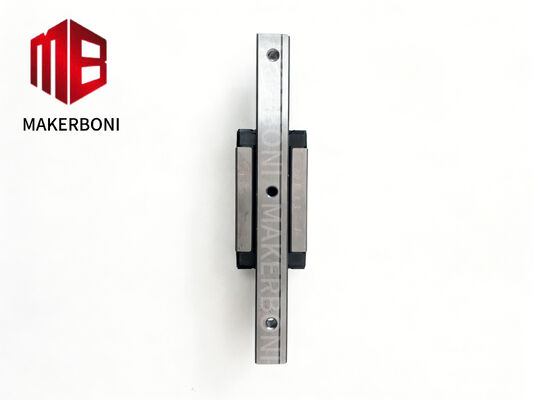

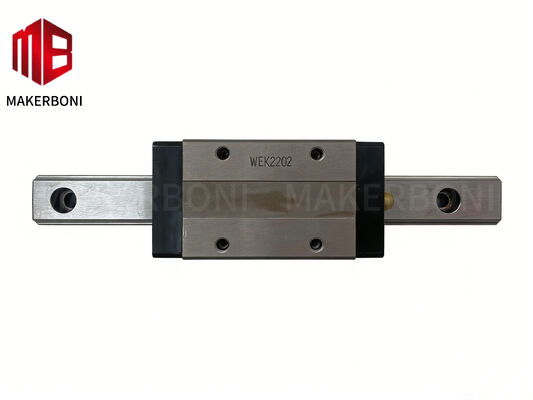

1011858000 ASSY, BEARING BLOCK & RAIL 15MM Extended 149.5mm Length Linear Motion Guide for Gerber

In precision industrial cutting and material handling systems, the quality of linear motion components directly impacts machine accuracy and longevity. The 1011858000 ASSY, BEARING BLOCK & RAIL, 15 MM, EXTENDED is a critical OEM replacement assembly designed specifically for Gerber cutting equipment and compatible spreader systems. This precision-ground rail assembly ensures smooth, friction-free movement for carriages and cutting heads in high-cycle manufacturing environments.

Product Overview

The 1011858000 is a complete bearing block and rail assembly featuring a 15mm rail width with an extended design for increased load capacity and stability. Manufactured to exacting tolerances, this linear guide system provides the rigidity required for consistent cutting accuracy in textile, composite, and sign-making applications. The assembly includes both the precision-ground rail and the pre-loaded bearing block, ensuring perfect alignment and immediate installation.

Key Specifications

Parameter	Specification
Part Number	1011858000
Product Name	ASSY, BEARING BLOCK & RAIL, 15 MM, EXTENDED
Compatibility	Cutting Systems / Spreader Machinery for Gerber
Rail Length	149.5 mm
Rail Width	15 mm
Mounting Hole Diameter	6.8 mm
Hole Spacing Pattern	15.85 mm / 52.6 mm / 52.5 mm / 6.2 mm (Sequential)
Block Length	64.5 mm
Type	Extended Bearing Block (Increased Load Capacity)
Motion Type	Linear Recirculating Ball Guide

Distinctive Features and Advantages

Precision Hole Pattern for Direct Replacement

The 1011858000 features a meticulously engineered mounting pattern with hole spacings of 15.85mm, 52.6mm, 52.5mm, and 6.2mm. This specific configuration ensures that the assembly bolts directly onto Gerber equipment without requiring modification or adapter plates, minimizing downtime during replacement.

Extended Bearing Block Design

Unlike standard blocks, the "EXTENDED" designation in this 1011858000 assembly means the bearing block length of 64.5mm provides additional ball circuits. This translates to higher load-carrying capacity and improved moment stiffness, essential for cantilevered cutting heads that exert uneven forces on the guide rail.

Robust 15mm Rail Width

The 15mm rail width strikes the perfect balance between compact design and load-bearing capability. The rail is precision ground to ensure straightness within microns, allowing for high-speed traversal without vibration or chatter.

Complete Assembly Convenience

This part number includes both the bearing block and the rail pre-assembled. This ensures that the internal ball paths are not contaminated during installation and that the preload settings are maintained exactly as factory-specified.

Exact Mounting Dimensions

For engineers verifying fitment, here are the critical mounting details for the 1011858000:

Overall Rail Length: 149.5mm - Fits specific carriage widths in Gerber spreaders
Mounting Holes: Four holes of Ø6.8mm are drilled and countersunk for secure fastening
Hole Spacing Sequence (End-to-End): 15.85mm (edge to first hole) → 52.6mm → 52.5mm → 6.2mm (last hole to opposite edge)

This asymmetrical pattern is designed to align precisely with the mating surface on the machine frame, ensuring that the 1011858000 assembly sits perfectly square to the direction of travel.

Applications and Common Uses

This specific 1011858000 bearing block and rail assembly is commonly utilized in:

Gerber Automated Cutting Systems: Guiding the X-axis carriage for fabric and composite cutting
Textile Spreading Machines: Supporting the traverse of spreader carriages back and forth across the table
Material Handling Gantries: Providing low-friction linear motion for pick-and-place units
Retrofit Projects: Replacing worn linear guides on industrial automation equipment with compatible 15mm rail spacing

Why Choose the Genuine 1011858000 Replacement?

When linear guides wear out, machine accuracy degrades, leading to material waste and cutter misalignment. The 1011858000 ASSY, BEARING BLOCK & RAIL is engineered to meet the original manufacturer's specifications for hardness, straightness, and ball precision.

By choosing this 1011858000 assembly, you ensure:

Exact Fit: No guesswork, no drilling, no shimming
Restored Accuracy: Return of original machine tolerance and cut quality
Extended Machine Life: High-quality materials reduce wear on mating components like drive motors and pinions

Upgrade or repair your Gerber system with confidence using the 1011858000 precision linear guide assembly.
